Airfoils and Lift

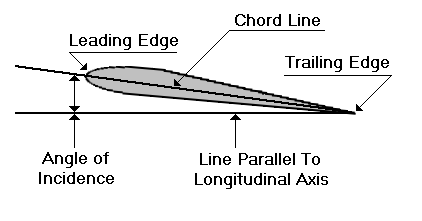

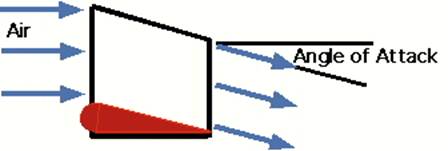

The angle of incidence is measured by the angle at which the wing is attached to the fuselage.

An airfoil is a device which gets a useful reaction from air moving over its surface. When an airfoil is moved through the air, it is capable of producing lift. Wings, horizontal tail surfaces, vertical tails surfaces, and propellers are all examples of airfoils.

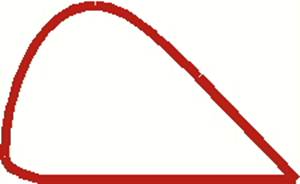

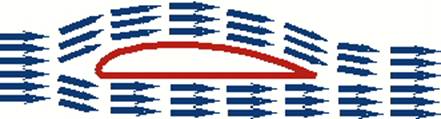

Generally the wing of small aircraft will look like the cross-section of the figure above. The forward part of an airfoil is rounded and is called the leading edge. The aft part is narrow and tapered and is called the trailing edge. A reference line often used in discussing airfoils is the chord, an imaginary straight line joining the extremities of the leading and trailing edges.

Angle of Incidence: The angle of incidence is the angle formed by the longitudinal axis of the airplane and the chord of the wing. The longitudinal axis is an imaginary line that extends lengthwise through the fuselage from nose to tail. The angle of incidence is measured by the angle at which the wing is attached to the fuselage. The angle of incidence is fixed --it normally cannot be changed by the pilot. (An exception is the Vought F8U Crusader.)

Bernoulli's Principle: To understand how lift is produced, we must examine a phenomenon discovered many years ago by the scientist Bernoulli and later called Bernoulli's Principle: The pressure of a fluid (liquid or gas) decreases at points where the speed of the fluid
